Hytera Walkie Talkie
Octogen is a Hytera Authorized Channel Partner in Malaysia. Genuine units, programmed and supported locally — view our Hytera certificate.
Octogen Resources: Hytera walkie talkie supplier in Malaysia. Compare Hytera DMR, PoC and specialist radios, then rent or buy with programming, accessories and service support.
Compare Hytera walkie talkie models
| 品牌 Brand | Hytera | Hytera | Hytera | Hytera | Hytera | Hytera | Hytera | Hytera |
|---|---|---|---|---|---|---|---|---|
| 图片 Picture |  |  |  |  |  |  |  |  |

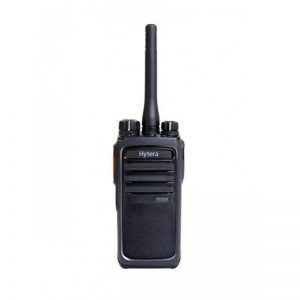

| 产品名称 Type | PD508 | TC-610 | *PD50X | *PD56X | TC-700 | PT790Ex | BP515 | BP565 |
| Brochure | View Brochure | View Brochure | View Brochure | View Brochure | View Brochure | View Brochure | View Brochure | View Brochure |
| 一般规格 General Specifications | ||||||||
| 频率范围 Frequency Range | UHF: 400-470MHz VHF: 136-174MHz | UHF: 400-420MHz VHF: 146-174MHz | UHF : 400-470MHz VHF : 136-174MHz UHF : 350-400MHz | UHF : 400-470MHz VHF : 136-174MHz UHF : 350-400MHz | UHF : 400-470 UHF : 440-490 UHF : 420-470 VHF : 136-174 UHF: 350-390 | 380-430MHz / 806-870 MHz | UHF: 400-470 MHZ VHF:136-174 MHz | UHF: 400-470 MHZ VHF:136-174 MHz |
| 区域容量 Zone Capacity | 3 (PD50X)/32 (PD56X) | 16 | 32 | 4 | 8 | |||
| 信道容量 Channel Capacity | 32 (PD50X)/512 (PD56X) | 16 | 256 | 512 | 16 | 64 | 128 | |
| 信道间隔 Channel Spacing | 25/20/12.5KHz | 25/12.5 | 12.5 / 20 / 25 | 12.5 / 20 / 25 | 25/20/12.5 | 12.5kHz/20kHz/25kHz | 12.5kHz/20kHz/25kHz | |
| 工作电压 Operating Voltage | 7.4V | 7.5 | 7.4V | 7.4V | 7.4V | 7.4V | 7.4V | 7.4V |
| 电池 Battery | 1500mAh (Li-Ion) 2000mAh (Li-Ion) | 1200 | 2000mAh (Li-ion) | 2000mAh (Li-ion) | 1800mAh Li-Ion (STD BATT) | 1800mAh Li-Ion (STD BATT) | 1500mAh (Standard); 2000mAh (Optional) | 1500mAh (Standard); 2000mAh (Optional) |
| 电池平均工作时间 （5/5/90工作循环，高功率发射） Battery Life | Analog/Digital: about 10 Hours/14 Hours (1500mAh) about 14 Hours/19 Hours (2000mAh) | 1200mAh Li-Ion battery(hours) - more than 9 1300mAh Ni-MH battery(hours) - more than 9 | Analog: 15.3h Digital: 20h | Analog: 15.3h Digital: 20h | 14hours | 14hours | Analog: 12h (1500mAh), 16h (2000mAh) Digital: 16h (1500mAh), 22h (2000mAh) | Analog: 12h (1500mAh), 16h (2000mAh) Digital: 16h (1500mAh), 22h (2000mAh) |
| 频率稳定度 Frequency Stability | ±0.5ppm | ±2.5 | ±0.5ppm | ±0.5ppm | ±2.5 | ±0.Sppm | ±0.Sppm | |
| 天线阻抗 Antenna Impedance | 50Ω | 50 | 50Ω | 50Ω | 50Ω | ±0.Sppm | ±0.Sppm | |
| 外型尺寸（高x宽x厚） Dimensions(H×W×D)mm | 115 x 54 x 27 mm (PD50X) 115 x 54 x 30 mm (PD56X) | 4.69 x 2.17 x 1.30 mm | 115 x 54 x 35 mm | 115 x 54 x 37 mm | 122 x 55 x 35 mm | 141 x 55 x 39 mm | 115 x 54.5 x 29.5 mm | 115 x 54.5 x 29.5 mm |
| 重量（含天线和标配电池） Weight(With antenna and battery) | 260g (PD50X)/280g(PD56X) | 9.52 | 298g | 311g | 316 | 505 (with 1800mA battery antenna) | 230g±5%g | 210g±5%g |
| 显示屏 Display | 1.77 inchTFT | N/A | ||||||
| 键盘 Keypad | ||||||||
| 紧急报警按键 Dedicated Emergency Button | ||||||||
| 可编程按键 Programmable Buttons | ||||||||
| 旋钮个数 Number of Knobs | ||||||||
| 环境指标 Environment | ||||||||
| 工作温度范围 Operating Temperature | -30℃~ +60℃ | -20~+50 | -30℃~ +60℃ | -30℃~ +60℃ | -30~+60 | 30°C ~ +60°C (Battery requires -20°C minimal operating temperature) | 30°C ~ +60°C (Battery requires -20°C minimal operating temperature) | |
| 存储温度范围 Storage Temperature | -40℃~ +85℃ | -40℃~ +85℃ | -40℃~ +85℃ | -40°C ~ +85°C | -40°C ~ +85°C | |||
| ESD（静电防护等级） | IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air) | IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air) | IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air) | IEC 61000-4-2 (Level 4) ±BkV (contact); ±15kV (air) | IEC 61000-4-2 (Level 4) ±BkV (contact); ±15kV (air) | |||
| 防尘防水 Dust and Water Intrusion | IP54 Standard | IP54 Standard | IP54 Standard | IEC60529-IP54 (IP67 optional) | IEC60529-IP54 (IP67 optional) | |||
| 湿度 Humidity | Per MIL-STD-810 C/D/E/F/G Standard | Per MIL-STD-810 C/D/E/F/G Standard | Per MIL-STD-810 C/D/E/F/G Standard | MIL-STD-810 G | MIL-STD-810 G | |||
| 冲击和振动 Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard | Per MIL-STD-810 C/D/E/F/G Standard | Per MIL-STD-810 C/D/E/F/G Standard | MIL-STD-810 G | MIL-STD-810 G | |||
| 组网（可工作的系统） Networking | ||||||||
| 模拟常规 Analog Conventional Mode | ||||||||
| MPT-1327 MPT-1327 Trunking | ||||||||
| 数字常规 Digital Conventional Mode | ||||||||
| IP互联 IP Site Connect | ||||||||
| DMR同播系统 DMR Simulcast System | ||||||||
| XPT集群系统 XPT Trunking | ||||||||
| DMR集群系统 DMR Tier III Trunking | ||||||||
| 连接 Connecting | ||||||||
| 内置Wi-Fi Integrated Wi-Fi | ||||||||
| 内置GPS GPS | ||||||||
| 内置Glonass Integrated GLONASS | ||||||||
| 振动 Vibration | ||||||||
| 蓝牙 Bluetooth | ||||||||
| 倒放 Man-down | ||||||||
| RFID RFID Board | ||||||||
| TF卡 TF Card | ||||||||
| 可选版 Option Board | ||||||||
| 定位/Positioning（定位精度规范适用于长期跟踪（95%值在额定＞-130dBm信号强度下5颗卫星可见）） | ||||||||
| 定位系统 Positioning System | ||||||||
| 水平位置精度 Horizontal Position Accuracy | ||||||||
| TTFF(首次定位时间）冷启动 Cold Start (Time to First Fix) | ||||||||
| TTFF(首次定位时间）热启动 Hot Start (Time to First Fix) | ||||||||
| 附件 Accessories | ||||||||
| 智能电池 Smart/IMPRES Battery | ||||||||
| 接收部分 Receiver | ||||||||
| 灵敏度（数字） Receiver Sensitivity (Digital) | 0.22μV / BER 5% | 0.22μV / BER 5% | ||||||
| 灵敏度（模拟） Receiver Sensitivity (Analog) | 0.22μV (Ttpical) (12dB SIN AD) 0.4μV (20dB SIN AD) 0.22μV (12dB SIN AD) | 0.22μV (Ttpical) (12dB SIN AD) 0.4μV (20dB SIN AD) 0.22μV (12dB SIN AD) | ||||||
| 邻道选择性 Adjacent Channel Selectivity | 60dB @ 12.5KHz/70dB @ 20 & 25KHz(TIA-603) 60dB @ 12.5KHz/70dB @ 20 & 25KHz(ETSI) | 60dB @ 12.5KHz/70dB @ 20 & 25KHz (TIA-603) 60dB @ 12.5KHz/70dB @ 20 & 25KHz(ETSI) | TIA-603: 60dB@l 2.5kHz; 70dB@20/25kHz ETSI: 60dB@l 2.5kHz; 70dB@20/25kHz | TIA-603: 60dB@l 2.5kHz; 70dB@20/25kHz ETSI: 60dB@l 2.5kHz; 70dB@20/25kHz | ||||
| 互调 Intermodulation | 70dB @ 12.5/20/25KHz 65dB @ 12.5/20/25KHz | 70dB @ 12.5/20/25KHz 65dB @ 12.5/20/25KHz | TIA-603: 70dB@l 2.5/20/25kHz ETSI: 65dB@l 2.5/20/25kHz | TIA-603: 70dB@l 2.5/20/25kHz ETSI: 65dB@l 2.5/20/25kHz | ||||
| 杂散响应抑制 Spurious Response Rejection | 70dB@12.5/20/25KHz (TIA-603) 70dB@12.5/20/25KHz (ETSI) | 70dB@12.5/20/25KHz (TIA-603) 70dB@12.5/20/25KHz (ETSI) | TIA-603: 70dB@l 2.5/20/25kHz ETSI: 70dB@l 2.5/20/25kHz | TIA-603: 70dB@l 2.5/20/25kHz ETSI: 70dB@l 2.5/20/25kHz | ||||
| 阻塞 Blocking | TIA-603: B0dB ETSI: 84dB | TIA-603: B0dB ETSI: 84dB | ||||||
| 交流声与噪声 Hum and Noise | 40dB@12.5KHz 43dB@20KHz 45dB@25KHz | 40dB@12.5KHz 43dB@20KHz 45dB@25KHz | 40dB@l 2.5kHz; 43dB@20kHz; 45dB@25kHz | 40dB@l 2.5kHz; 43dB@20kHz; 45dB@25kHz | ||||
| 额定音频输出功率 Rated Audio Power Output | 800mW | 0.5W | 0.5W | >1W | lW | lW | ||
| 额定音频失真 Rated Audio Distortion | ≤3% | ≤5% | ≤3% | ≤3% | ≤3% | ≤3% | ||
| 音频响应 Audio Response | +1 ~ -3dB | +1 ~ -3dB | +1 ~ -3dB | +1 to -3dB | +1 to -3dB | |||
| 传导/辐射杂散 Conducted Spurious Emission | <-57dBm | <-57dBm | <-57dBm | <-57dBm | <-57dBm | |||
发射部分 Transmitter | ||||||||
| 输出功率 RF Output Power | VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W | 5W/2W(VHF) 5W/2W(UHF) | VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W | VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W | 5W/1W (VHF) 4W/1W (UHF) | 1W | VHF: SW/lW; UHF: 4W/1W | VHF: SW/lW; UHF: 4W/1W |
| FM调制方式 FM Modulation | 11K0F3E @ 12.5KHz 14K0F3E @ 20KHz 16K0F3E @ 25KHz | 11K0F3E @ 12.5KHz 14K0F3E @ 20KHz 16K0F3E @ 25KHz | 11K0F3E @ 12.5KHz 14K0F3E @ 20KHz 16K0F3E @ 25KHz | 45/40dB | 11 K0F3E@l 2.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz | 11 K0F3E@l 2.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz | ||
| 4FSK数字调制 4FSK Digital Modulation | 12.5KHz Data Only: 7K60FXD 12.5KHz Data & Voice: 7K60FXW | 12.5KHz Data Only: 7K60FXD 12.5KHz Data & Voice: 7K60FXW | 12.5KHz Data Only: 7K60FXD 12.5KHz Data & Voice: 7K60FXW | 12.SkHz Data Only: 7K60FXD 12.SkHz Data and Voice: 7K60FXW | 12.SkHz Data Only: 7K60FXD 12.SkHz Data and Voice: 7K60FXW | |||
| 传导/辐射杂散 Conducted/Radiated Emission | -36dBm <1GHz, -30dBm >1GHz | -36dBm <1GHz, -30dBm >1GHz | -36dBm <1GHz, -30dBm >1GHz | -36dBm | -36dBm | |||
| 调制限制 Modulation Limiting | ±2.5KHz @ 12.5KHz ±4.0KHz @ 20KHz ±5.0KHz @ 25KHz | ±2.5KHz @ 12.5KHz ±4.0KHz @ 20KHz ±5.0KHz @ 25KHz | ±2.5KHz @ 12.5KHz ±4.0KHz @ 20KHz ±5.0KHz @ 25KHz | ±2.SkHz@l 2.SkHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz | ±2.SkHz@l 2.SkHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz | |||
| FM交流与噪声 FM Hum&Noise | 40dB @ 12.5 Hz 43dB @ 20KHz 45dB @ 25KHz | 40dB @ 12.5 Hz 43dB @ 20KHz 45dB @ 25KHz | 40dB @ 12.5 Hz 43dB @ 20KHz 45dB @ 25KHz | 45/40dB | 40dB@l 2.SkHz; 43dB@20kHz; 45dB@25kHz | 40dB@l 2.SkHz; 43dB@20kHz; 45dB@25kHz | ||
| 邻道功率 Adjacent Channel Power | 60dB @ 12.5KHz, 70dB @ 20/25KHz | 60dB @ 12.5KHz, 70dB @ 20/25KHz | 60dB @ 12.5KHz, 70dB @ 20/25KHz | 60dB@l 2.5kHz; 70dB@20/25kHz | 60dB@l 2.5kHz; 70dB@20/25kHz | |||
| 音频响应 Audio Response | +1 ~ -3dB | +1 ~ -3dB | +1 ~ -3dB | +1 to -3dB | +1 to -3dB | |||
| 音频失真 Audio Distortion | ≤3% | ≤3% | ≤3% | ≤5% | <(3% | <(3% | ||
| 声码器 Digital Vocoder Type | AMBE++ or SELP | AMBE++ or SELP | AMBE++ or SELP | AMBE+2™ | AMBE+2™ | |||
| 公共软件功能 Common Software Features | ||||||||
| 联系人个数 Contact Number | ||||||||
| 扫描 Scan | ||||||||
| 混合信道扫描 Mixed Channel Scan | ||||||||
| 扫描列表个数 Scan List Number | ||||||||
| 扫描列表成员数 Scan List Member Capacity | ||||||||
| 禁发 TOT | ||||||||
| 智能音频配件 IMPRES audio | ||||||||
| 噪音消除 Noise Cancelling | ||||||||
| 双麦克降噪 Dual-mic Noise Reduction | ||||||||
| 音质音量优化器 LQO / Intelligent Audio | ||||||||
| 自动增益控制 AGC(Automatic Gain Control) | ||||||||
| 自定义情景模式 Customized Audio Profile | ||||||||
| 声控 VOX | ||||||||
| 数字功能 Digital Features | ||||||||
| 对讲机管理系统 Radio Management | ||||||||
| 空中编程 Over-the-air Programming (OTAP) | ||||||||
| 空中升级 Over-the-air Software Upgrade | ||||||||
| 无线电池管理 Over-the-Air Battery Management | ||||||||
| TDMA Direct Mode TDMA | ||||||||
| 基础加密 E2E Basic Encryption | ||||||||
| 高级加密 E2E Advanced Encryption | ||||||||
| 单独工作 Lone Worker | ||||||||
| 紧急报警 Emergency | ||||||||
Hytera walkie talkie FAQ
Is Hytera compatible with Motorola radios?
Yes. We programme all radios to share frequencies before delivery, so your Hytera front-desk team can talk to Motorola security guards without issues.
How long does the Hytera PD365 battery last?
The PD365 gives 12-14 hours on a single charge with moderate use. For 12-hour shifts, order one spare battery per 5 units.
Can Hytera radios be tracked via GPS?
The HP685 supports GPS tracking, useful for security companies managing patrol routes across multiple properties. Ask us to set up basic tracking with your rental.
Octogen product category
Hytera Walkie Talkie Malaysia
Compare Hytera PD508, P30 PoC, PT790EX and MT680 radios for Malaysian security, factory, event and site teams. Ask Octogen for DMR or PoC planning, programming, rental, accessories and quote support.
Hytera Authorized Channel PartnerView our Hytera certificate →How to choose this category
Owner-confirmed authorized Hytera partnership for Malaysian teams that need DMR, PoC, ATEX or mobile radio guidance and support. Send Octogen your user count, location, coverage area and accessory needs before confirming the final model.
1. Use case
Match the radio to security, construction, events, warehouse, hotel, fleet or backup communication.
2. Coverage
Check floors, basements, outdoor distance, obstructions and whether a repeater or PoC radio is needed.
3. Accessories
Plan batteries, chargers, earpieces, speaker microphones and programming before rollout.
Showing 1–12 of 14 results
